Flue Types for a Gas AGA

When it comes to choosing a gas AGA cooker for your home, one of the critical decisions you'll need to make is selecting the right type of flue system. The flue type not only affects the installation process but also influences the performance and efficiency of your cooker.

At Rural Ranges (Dorset based, covering England, Wales and internationally), we will help you select the correct style for your home but the below can be used as a guide to enable you make an informed decision. In some instances, it will not be possible to fulfil the requirements for a gas flue and in these cases, it may instead be necessary to select an electric model, where there are a wider range of options. This guide will walk you through the various flue options available for gas AGAs, helping you make an informed decision.

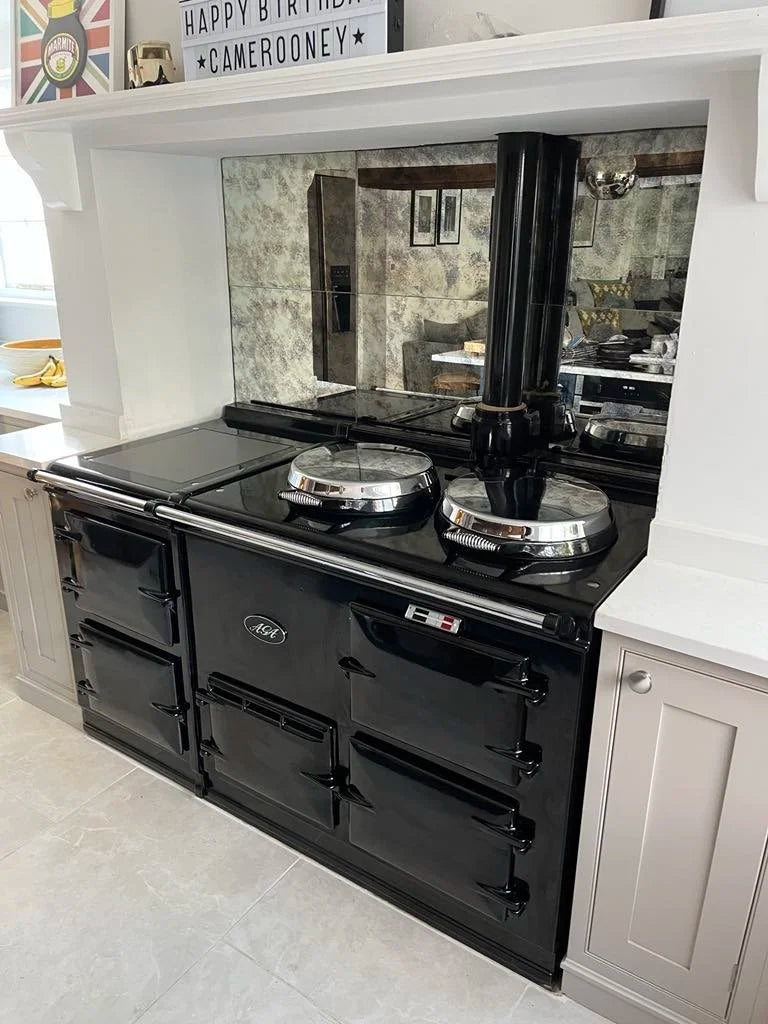

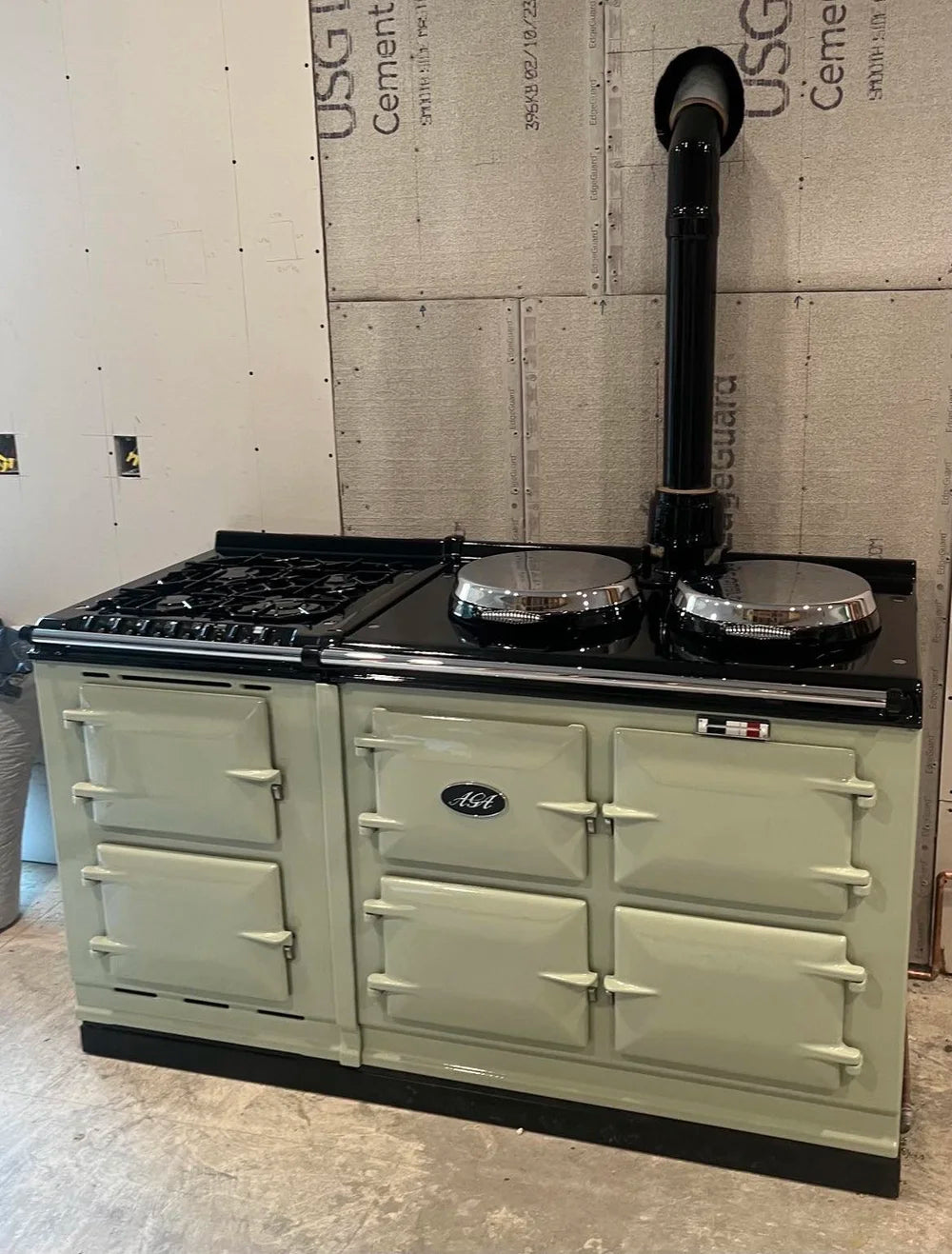

1. Conventional Flue

Description:

  • A conventional flue, also known as a traditional flue, relies on natural draft to vent combustion gases outside.
  • It requires a vertical flue pipe that typically extends through the roof of your home.
  • Alternatively, an external twin lined flue can be installed on the outside of the house.
  • We will install the visible vitreous flue which connects the Aga to the liner but the chimney must be lined ahead of our arrival.
Pros Cons
Suitable for homes with an existing chimney. Installation can be complex and costly if noexisting chimney is available.
Efficient at removing combustion gases. External twin lined flues can be ugly and affectthe aesthetic of your home.
Reliable in various weather conditions. A new liner is required for every new gas installation,so even if you have a relatively new liner, a fresh onewill be required.
No fans or additional parts which may affect reliability. Liners can be costly, especially if travelling throughmultiple stories, where scaffolding may be required.
Does not require a source of electricity. The flue must be prepared ahead of our arrival. We can recommend trusted installers for this.

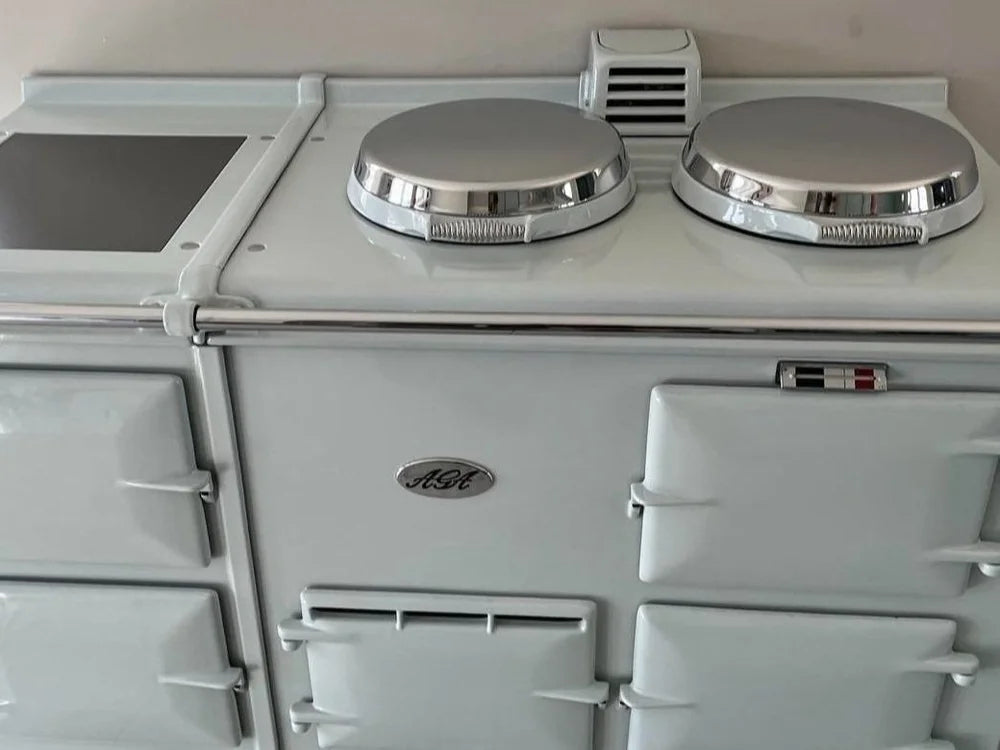

2. Balanced Flue

Description:

  • A balanced flue system is a sealed unit that draws air from outside and expels combustion gases back out through a horizontal flue pipe.
  • It must be installed directly on an external wall.
Pros Cons
Highly efficient as it uses external air for combustion. Limited to specific installation locations (near an external wall).
Can be installed in homes without a traditional chimney. Limited by thickness of wall.
We can fit the flue on installation, reducing costs and removingthe need for outside contractors. Requires a balanced flue fan which may need replacing over time.
Does not require a source of electricity.

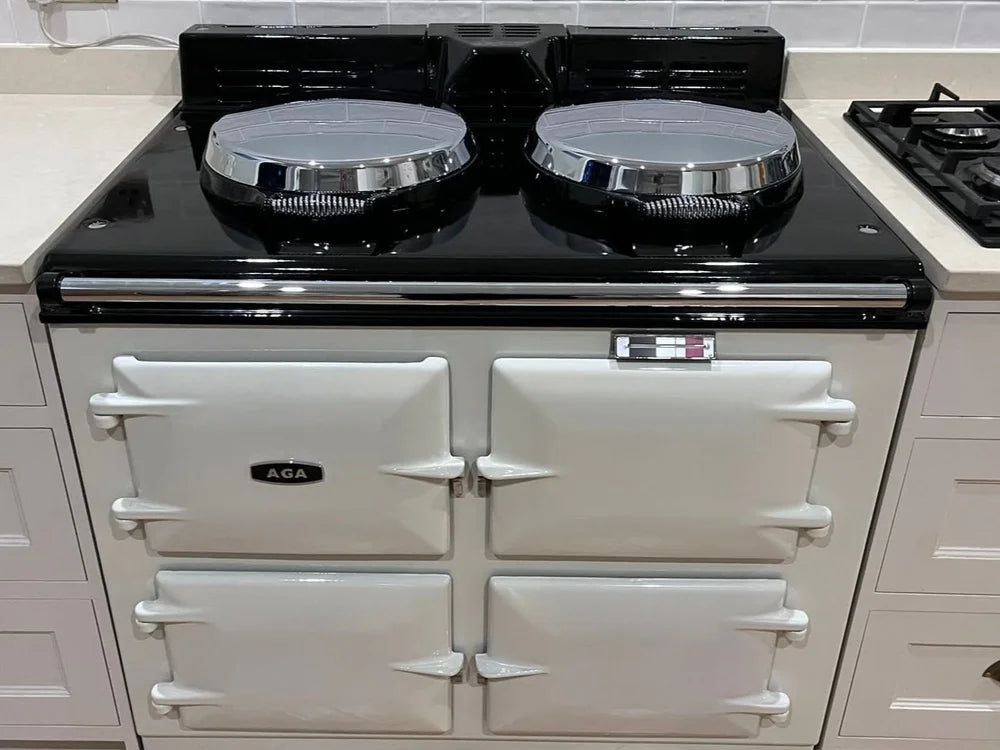

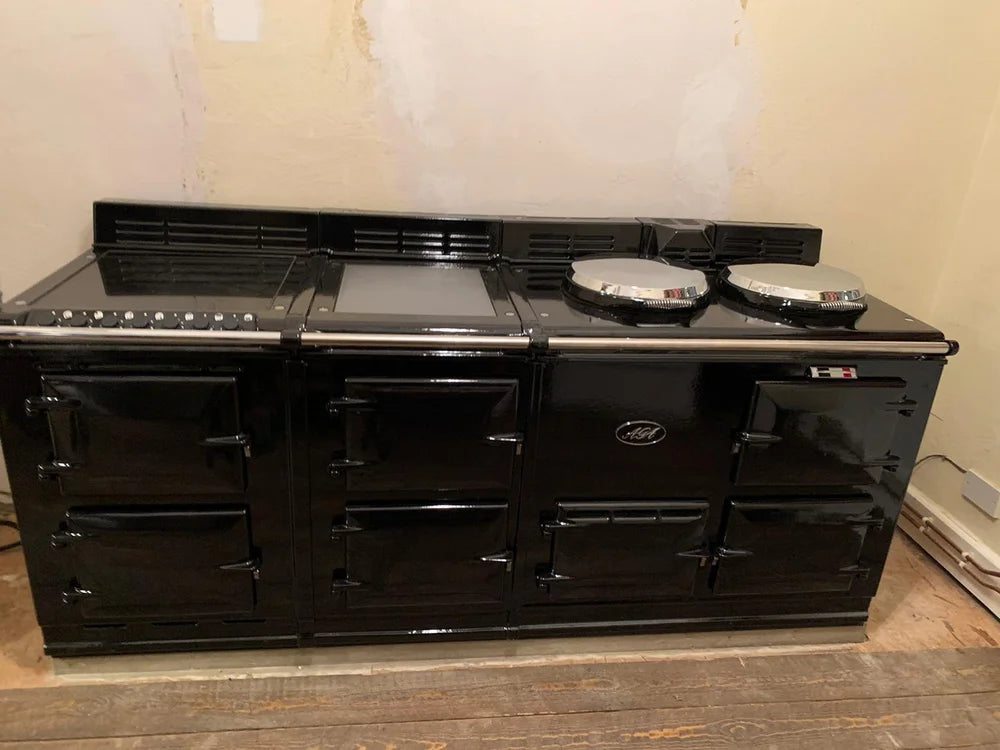

3. Power Flue

Description:

  • A power flue, also known as a fan-assisted flue, uses an electric fan to expel combustion gases through a horizontal flue pipe.
  • It allows for flexible placement of the AGA cooker, even in locations far from an external wall.
Pros Cons
Versatile installation options due to the fan-assisted expulsion of gases. Requires an electrical connection for the fan.
Ideal for homes where conventional or balanced flue systems are not feasible. The fan can produce some noise during operation and may need replacing over time. Power flue Agas have a different top plate style, with wide shrouds at the back.Some prefer the aesthetic of the traditional flue or balanced flue models.
Can be installed in homes without a traditional chimney. Requires a balanced flue fan which may need replacing over time.
We can fit the flue on installation, reducing costs and removing the need foroutside contractors.

Choosing the Right Flue for Your Home

When selecting the appropriate flue type for your gas AGA, consider the following factors:

  1. Existing Infrastructure: If your home already has a chimney, a conventional flue is a simple and reliable system and may be most favourable. Many also prefer the aesthetic of a traditional black upright flue. However, if you lack a chimney, a balanced or power flue could be more suitable and cost effective.
  2. Installation Location: Determine where you want to install your AGA cooker. Balanced flues require proximity to an external wall, while power flues offer more flexibility. Consider the location of windows – there are strict regulations on the proximity of flues to openings. We will provide guidance on this.
  3. Safety: Ensure that your chosen flue system complies with regulations- we will provide full instruction on this. Ensure that any new flue is fitted by a qualified and certified individual or company.
  4. Maintenance: Consider the long-term maintenance requirements. Conventional flues need occasional chimney sweeping, while power flues and balanced flues have fans which may require occasional replacement.

Choosing the right flue system for your gas AGA cooker is crucial for optimal performance, safety, and efficiency. By understanding the different flue types available and considering your home's specific needs, you can make an informed decision that will ensure your AGA cooker operates effectively for years to come.
